When you’re working with metal, plastic, or even some types of wood, choosing the correct pilot hole size is crucial. A proper self tapping screw drill size chart helps you avoid common problems like stripped threads, broken screws, or weak joints.
In this guide, we’ll break it down in a simple, practical way so you can confidently pick the right drill size every time.
ORDER SELF TAPPING FROM BHANDARI ENTERPRISES
📏 What Is a Self Tapping Screw?
A self tapping screw is designed to create its own threads as it goes into the material. Unlike regular screws, it doesn’t always require a pre-threaded hole—but in many cases, drilling a pilot hole first gives much better results.

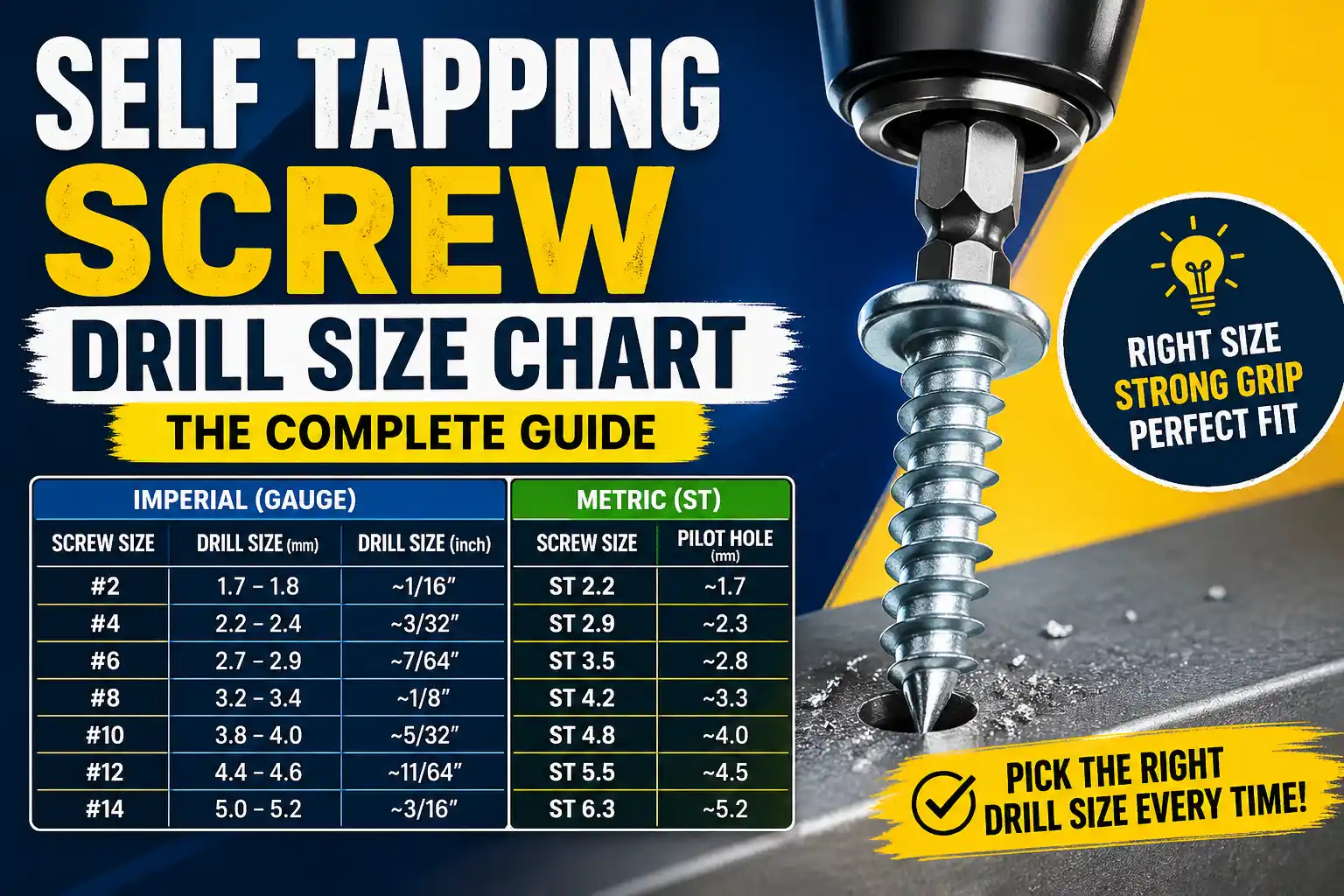

📊 Self Tapping Screw Drill Size Chart
🔹 Imperial (Gauge) Sizes
| Screw Size | Recommended Drill Size (mm) | Drill Size (inch) |
|---|---|---|
| #2 | 1.7 – 1.8 | ~1/16″ |
| #4 | 2.2 – 2.4 | ~3/32″ |
| #6 | 2.7 – 2.9 | ~7/64″ |
| #8 | 3.2 – 3.4 | ~1/8″ |
| #10 | 3.8 – 4.0 | ~5/32″ |
| #12 | 4.4 – 4.6 | ~11/64″ |
| #14 | 5.0 – 5.2 | ~3/16″ |
🔹 Metric Sizes
| Screw Size | Pilot Hole (mm) |
|---|---|
| ST 2.2 | ~1.7 mm |
| ST 2.9 | ~2.3 mm |
| ST 3.5 | ~2.8 mm |
| ST 4.2 | ~3.3 mm |
| ST 4.8 | ~4.0 mm |
| ST 5.5 | ~4.5 mm |
| ST 6.3 | ~5.2 mm |
⚙️ Simple Rule to Remember
If you don’t have a chart handy, here’s a quick trick:
👉 Drill size should be about 75% to 85% of the screw diameter
This ensures:
- The screw can cut threads properly
- It won’t snap under pressure
- The joint remains strong and secure
🧠 How Material Affects Drill Size
Not all materials behave the same, so you may need to adjust slightly:
- Soft materials (plastic, soft wood): Use a smaller pilot hole for better grip
- Hard materials (steel, thick metal): Use a slightly larger hole to prevent breakage
- Aluminium: Stay in the middle range for best results
⚠️ Common Mistakes to Avoid
Even with a good self tapping screw drill size chart, mistakes can happen:
- Drilling a hole that’s too small → screw may break
- Drilling too large → weak or loose fit
- Skipping pilot holes in hard metal → poor threading
🔧 Final Thoughts
Using the correct drill size is the difference between a clean, strong connection and a frustrating failure. Keeping a reliable self tapping screw drill size chart handy will save time, effort, and materials on any project.
If you’re unsure, always test on a scrap piece first—it’s a small step that can prevent big problems later.
