Understanding Pan Phillips Self-Tapping Screw Size Chart
When it comes to fastening materials securely, Pan Phillips Self tapping Screw Size Chart. pan Phillips self-tapping screws are a popular choice due to their versatility and ease of use. These screws feature a rounded head and a Phillips drive, allowing for efficient installation with minimal effort. To help you select the right screw for your project, here’s a comprehensive size chart and some key considerations. Pan Phillips Self tapping Screw Size Chart
Self Tapping Screw Manufacturer

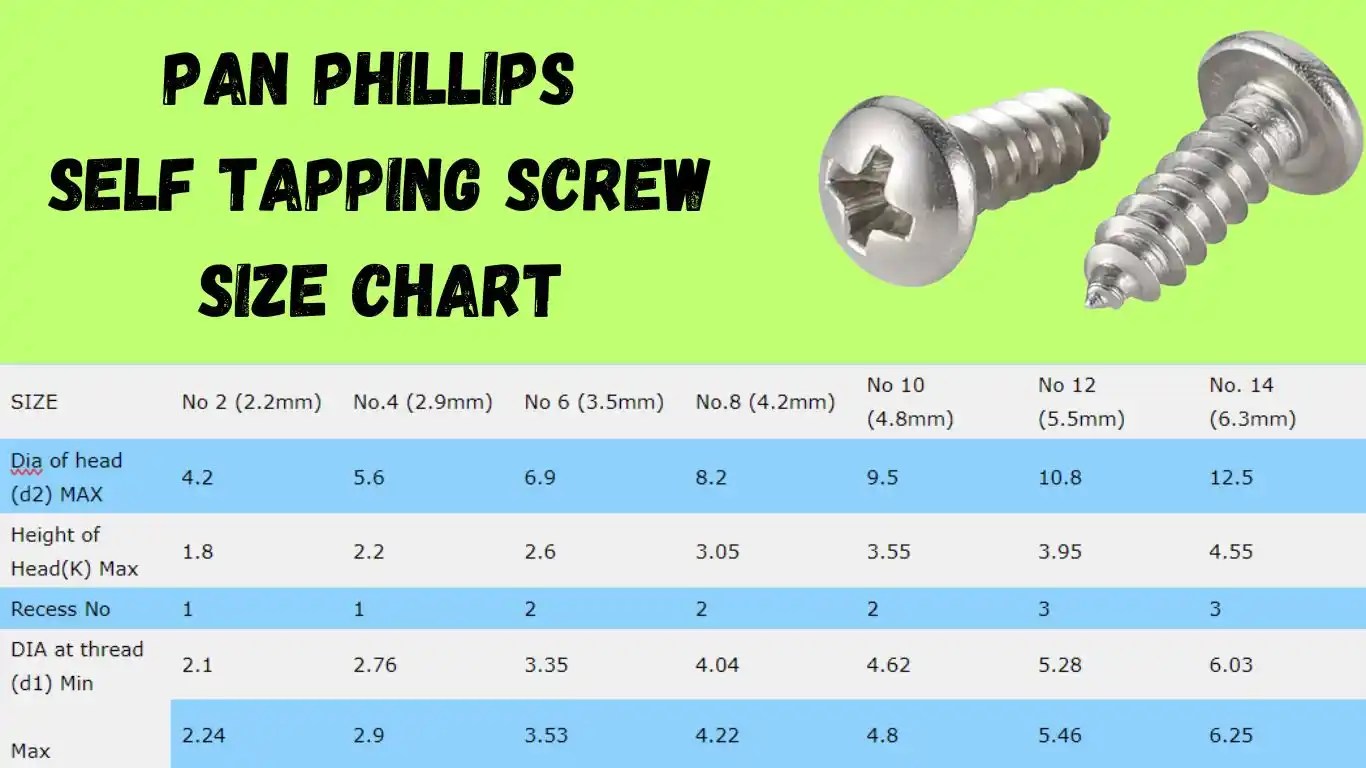

Pan Phillips Self-Tapping Screw Size Chart
| SIZE | No 2 (2.2mm) | No.4 (2.9mm) | No 6 (3.5mm) | No.8 (4.2mm) | No 10 (4.8mm) | No 12 (5.5mm) | No. 14 (6.3mm) |
| Dia of head (d2) MAX | 4.2 | 5.6 | 6.9 | 8.2 | 9.5 | 10.8 | 12.5 |
| Height of Head(K) Max | 1.8 | 2.2 | 2.6 | 3.05 | 3.55 | 3.95 | 4.55 |
| Recess No | 1 | 1 | 2 | 2 | 2 | 3 | 3 |
| DIA at thread (d1) Min Max | 2.1 | 2.76 | 3.35 | 4.04 | 4.62 | 5.28 | 6.03 |
| 2.24 | 2.9 | 3.53 | 4.22 | 4.8 | 5.46 | 6.25 |
▎Notes:
– Diameter: Refers to the nominal diameter of the screw.
– Dia of Head (d2): Maximum diameter of the screw head.
– Height of Head (K): Maximum height of the screw head.
– Recess No: Indicates the type of recess for the screwdriver.
– Dia at Thread (d1): Minimum and maximum diameters at the thread.
Pan Phillips Self-Tapping Screws (Sizes No. 2 to No. 14)
Introduction
Pan Phillips self-tapping screws are widely used in various applications due to their ability to create their own threads in materials such as wood, plastic, and metal. The following details outline the specifications for sizes No. 2, 4, 6, 8, 10, 12, and 14. Pan Phillips Self tapping Screw Size Chart
Chat us on Whatsapp for pan phillips self tapping screw
Specifications:
1. Pan Phillips Self-Tapping Screws 2 number Thread Diameter, Head Diameter, Head Height
– Thread Diameter (d1): 2.1 mm (min) – 2.24 mm (max)
– Head Diameter (d2): Max 4.2 mm
– Head Height (K): Max 1.8 mm
– Recess Number: 1
2. Pan Phillips Self-Tapping Screws 4 number Thread Diameter, Head Diameter, Head Height
– Thread Diameter (d1): 2.76 mm (min) – 2.9 mm (max)
– Head Diameter (d2): Max 5.6 mm
– Head Height (K): Max 2.2 mm
– Recess Number: 1
3.Pan Phillips Self-Tapping Screws 6 number Thread Diameter, Head Diameter, Head Height
– Thread Diameter (d1): 3.35 mm (min) – 3.53 mm (max)
– Head Diameter (d2): Max 6.9 mm
– Head Height (K): Max 2.6 mm
– Recess Number: 2
Pan Phillips Self-Tapping Screws 8 number Thread Diameter, Head Diameter, Head Height
– Thread Diameter (d1): 4.04 mm (min) – 4.22 mm (max)
– Head Diameter (d2): Max 8.2 mm
– Head Height (K): Max 3.05 mm
– Recess Number: 2
Pan Phillips Self-Tapping Screws 10 number Thread Diameter, Head Diameter, Head Height
– Thread Diameter (d1): 4.62 mm (min) – 4.8 mm (max)
– Head Diameter (d2): Max 9.5 mm
– Head Height (K): Max 3.55 mm
– Recess Number: 2
6. Pan Phillips Self-Tapping Screws 12 number Thread Diameter, Head Diameter, Head Height
– Thread Diameter (d1): 5.28 mm (min) – 5.46 mm (max)
– Head Diameter (d2): Max 10.8 mm
– Head Height (K): Max 3.95 mm
– Recess Number: 3
7. Pan Phillips Self-Tapping Screws 14 number Thread Diameter, Head Diameter, Head Height
– Thread Diameter (d1): 6.03 mm (min) – 6.25 mm (max)
– Head Diameter (d2): Max 12.5 mm
– Head Height (K): Max 4.55 mm
– Recess Number: 3
Key Considerations
1. Material Compatibility: Always choose a screw that is compatible with the materials you are working with. For example, wood screws are designed differently than those intended for metal.
2. Length vs. Diameter: The length of the screw should be appropriate for the thickness of the materials being joined. The diameter should also be chosen based on the load requirements and the material’s strength.
3. Thread Type: Self-tapping screws come with different thread types (fine or coarse). Coarse threads are better for softer materials, while fine threads provide better holding power in harder materials.
4. Head Style: The pan head design allows for a larger bearing surface, which is beneficial in distributing load and reducing the risk of pull-through.
5. Drive Type: The Phillips drive allows for better torque transfer, making it easier to install and reducing the likelihood of cam-out. Pan Phillips Self tapping Screw Size Chart
▎Conclusion
Selecting the right pan Phillips self-tapping screw is crucial for ensuring a secure and lasting connection in your projects. By referring to this size chart and considering the material compatibility, length, diameter, and thread type, you can make an informed choice that meets your needs. Always remember to check manufacturer specifications for any additional recommendations or requirements specific to your application. Happy fastening!02:40 PM
